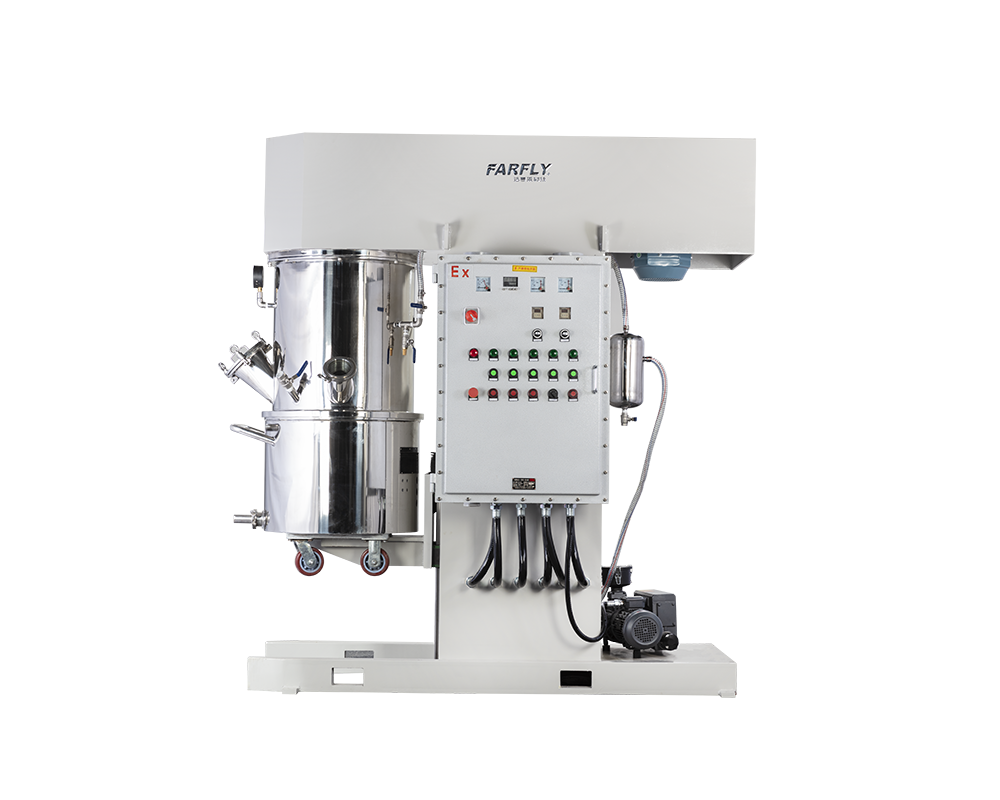

FXJ Planetary mixer

Characteristics

• The stirring paddle in the kettle rotates during revolution,which makes the material flow around, so it can realize mixing(compounding) effect in a short amount of time.
• There are various blades such as frame, paddle and dough twisting frame for low speed blades that can be chosen.
• Vacuum design ensures the material is working under sealed environment.
• Heating means of kettle can be electrical heating, steam heating, hot water or oil circulation heating; intelligent temperature director can control temperature precisely.

Our team consists of highly motivated and skilled specialists who know how to deal with any issue that you may come across. This creates a basis for lasting relationships with our clients built on trust and mutual understanding.

We are devoted to creating unique and innovative solutions along with the high-quality supporting services. Our team consists of highly motivated and skilled specialists who know how to deal with any issue that you may come across. This creates a basis for lasting relationships with our clients built on trust and mutual understanding.

Product Performance

There is a scraper on the planetary frame that rotates with the planetary frame, close to the barrel wall and continuously scrapes it, so that there is no retained material on the barrel wall and the mixing effect is improved.

The mixing time is controlled by the user according to the properties of the material and can be adjusted through the control panel.

This device can work under vacuum and can continuously discharge water and other substances. Therefore, it can be used as a degassing kettle.

Materials can be heated or cooled by oil or water circulation as needed; steam heating is also possible. The heating temperature is displayed by the temperature controller on the control panel.

Since this device has good mixing, shearing and dispersing effects, it is particularly suitable for dispersing and mixing solid-solid material, solid-liquid material, and liquid-liquid material, so it is used in chemical, food, light industry, pharmaceutical, building materials and other industries.

Technical specification

Type/Parameter	Bowlsize(Dia.×Dep)	Capacity L		Power Kw	Agitating speed on own axis rpm	Orbital/scraping speed rpm	Raising/lowering stroke mm	Vacuum Mpa
Type/Parameter	Bowlsize(Dia.×Dep)	Full volume L	Working volume L	Power Kw	Agitating speed on own axis rpm	Orbital/scraping speed rpm	Raising/lowering stroke mm	Vacuum Mpa
FXJ-2L	Φ180×120/150	3/3.8	2	0.37~0.75	0~100	0~60	220	-0.098~0.08
FXJ-5L	Φ240/288×180	8/11.7	5	0.55~1.5	0~100	0~60	270
FXJ-100L	Φ600×460/500	130/140	100	4~11	0~100	0~60	560
FXJ-200L	Φ720/750×650	265/287	200	7.5~15	0~80	0~50	750
FXJ-500L	Φ1000×380	650	500	15~37	0~60	0~40	930
FXJ-1000L	Φ1250×1000	1227	1000	30~55	0~50	0~30	1100

Product Performance

①Efficient mixing:There is a scraper on the planetary frame that rotates with the planetary frame,close to the barrel wall and continuously scrapes it,so that there is no retained material on the barrel wall and the mixing effect is improved.
②Flexible mixing time adjustment:The mixing time is contrlled by the user according to the properties of the material and can be adjusted through the control panel.
③Easy to operate:The cover and planetary agitator are lifted and lowered by double-column hydraulic pressure,which operation smooth,fast and easy. makes the
④Applicable to vacuum environment:This device can work under vacuum and substances.Therefore,it can be used as a degassing kettle.can continuously discharge water and other
⑤Multiple heating methods: materials can be heated or cooled by oil or water circulation as needed;steam heating is also possible. The heating temperature is displayed by the temperature controller on the control panel
⑥Wide range of applications: Since this device has good mixing,shearing and dispersing effects,it is particularly suitable for dispersing and mixing solid-solid material,solid-liquid material,and liquid-tiquid material,so it is used in chemical,food light indus- try,pharmaceutical,building materials and other industries.
