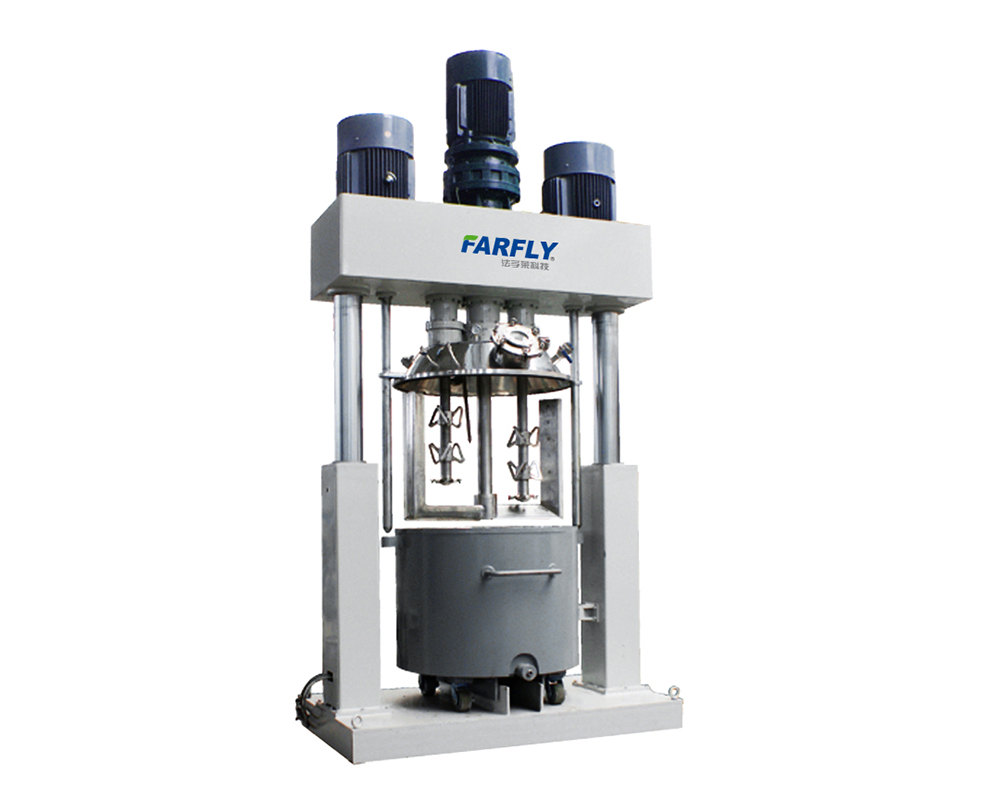

FQLF Powerful Dispersing Machine

Product Introduction

As an efficient and multifunctional homogenizer, the strong disperser is not only the core device for glass adhesive production but also widely used in the adhesive industry, including silicone sealants, structural adhesives, weather-resistant adhesives, black adhesives, and anti-mold adhesives. The device is equipped with three electric motors that drive three different types of agitators inside the kettle to work together: one agitator revolves around the axis of the kettle body, while the other two rotate at different speeds around their own axes, causing the material to form complex motion trajectories inside the kettle, thereby experiencing strong shear and rubbing effects. To ensure the mixing effect, a mountain-shaped scraper is also included inside the equipment, which rotates around its axis. This scraper automatically scrapes out raw materials adhered to the kettle wall and bottom, rolling them into the mixing area to achieve a seamless mixing process. Additionally, the strong disperser features excellent sealing performance, supports vacuum suction, and effectively exhausts and removes bubbles. The cylinder head features a hydraulic lifting design, allowing the cylinder body to move freely and making operation convenient. The mixer form can be customized according to the material characteristics, such as multi-layer blade type, frame type, butterfly type, or impeller type, and usually adopts variable frequency speed regulation to accurately meet various stringent process requirements.

Our team consists of highly motivated and skilled specialists who know how to deal with any issue that you may come across. This creates a basis for lasting relationships with our clients built on trust and mutual understanding.

We are devoted to creating unique and innovative solutions along with the high-quality supporting services. Our team consists of highly motivated and skilled specialists who know how to deal with any issue that you may come across. This creates a basis for lasting relationships with our clients built on trust and mutual understanding.

Product Performance

The equipment is equipped with three independent motors to drive three different types of agitators inside the kettle. One set of agitators revolves around the axis of the kettle, while the other two sets rotate at different speeds around their own axes at high speed. This complex planetary motion subjects the material to strong shearing, rubbing, and dispersing effects, ensuring uniform and efficient mixing.

The unique mountain-shaped scraper moves along with the revolution trajectory, continuously scraping off the raw materials adhered to the kettle wall and bottom and rolling them into the mixing zone, completely eliminating mixing blind spots and significantly improving the mixing effect.

The equipment has excellent sealing performance and can be used in conjunction with vacuum systems to effectively eliminate bubbles in materials, improving product density and quality.

The cylinder head adopts a hydraulic lifting system, and the cylinder body can move freely, which is convenient for feeding, discharging, and equipment cleaning, greatly improving the convenience and work efficiency of operation.

Technical Parameters

Type	Capacity L	Power kW	Power kW	Speed rpm	Speed rpm
FQLF-600	600	15	22×2	0～40	0～1450
FQLF-1500	1500	22	30×2	0～40	0～1000
FQLF-3000	3000	30	37×2	0～40	0～1000
FQLF-5000	5000	45	55×2	0～40	0～1000

Strong cutting
The equipment is equipped with three independent motors to drive three different types of agitators inside the kettle. One set of agitators revolves around the axis of the kettle, while the other two sets rotate at different speeds around their own axes at high speed. This complex planetary motion subjects the material to strong shearing, rubbing, and dispersing effects, ensuring uniform and efficient mixing.

No blind spots for scraping walls
The unique mountain-shaped scraper moves along with the revolution trajectory, continuously scraping off the raw materials adhered to the kettle wall and bottom and rolling them into the mixing zone, completely eliminating mixing blind spots and significantly improving the mixing effect.

Excellent sealing
The equipment has excellent sealing performance and can be used in conjunction with vacuum systems to effectively eliminate bubbles in materials, improving product density and quality.

Convenient operation
The cylinder head adopts a hydraulic lifting system, and the cylinder body can move freely, which is convenient for feeding, discharging, and equipment cleaning, greatly improving the convenience and work efficiency of operation.
