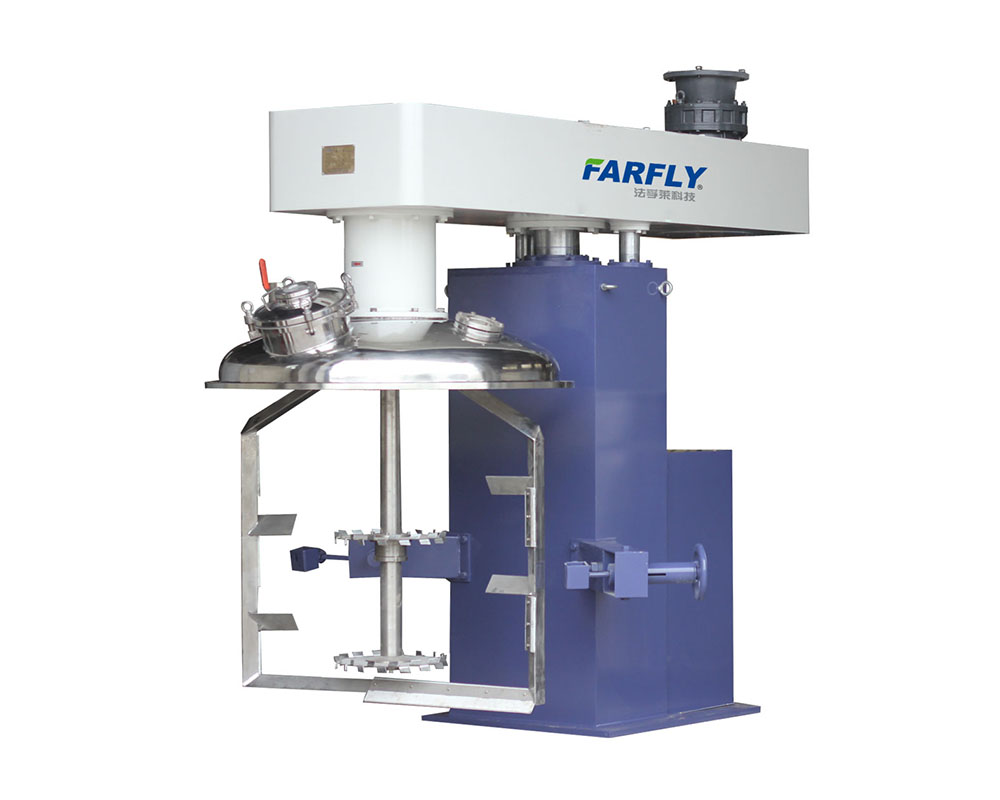

FDT Concentric double shaft agitator

Product Introduction

The FDT Concentric double shaft agitator is an efficient dispersing and mixing equipment specially designed for the adhesive field. The core structure consists of a scraper agitator and a high-speed disperser, which work together to achieve rapid homogenization of materials through strong shear and mixing forces. To meet the requirements of different viscosities, densities, and formulations, the equipment supports flexible configuration: the mixer can be selected as a frame, or a half frame, and the dispersing disc provides multiple options such as double disc, single disc, and Neumann disc. On the operational level, the task can be easily completed by controlling the lifting and lowering of the mixer. The equipment base adopts a large-area bed board design, buried underground and fixed with bolts, ensuring extremely high stability and also facilitating the disassembly and cleaning of the mixer and spindle.

Our team consists of highly motivated and skilled specialists who know how to deal with any issue that you may come across. This creates a basis for lasting relationships with our clients built on trust and mutual understanding.

We are devoted to creating unique and innovative solutions along with the high-quality supporting services. Our team consists of highly motivated and skilled specialists who know how to deal with any issue that you may come across. This creates a basis for lasting relationships with our clients built on trust and mutual understanding.

Product Performance

The mixer is equipped with a PTFE scraper, which closely adheres to the inner wall of the container that has been precision turned and mirror polished, continuously scraping off wall-mounted materials to ensure no dead corners or residues, significantly improving mixing efficiency.

Specially designed for high-solid-content products. The structure is sturdy and durable. It easily handles materials with viscosity up to 100000 CPS.

Precise mechanical design ensures low noise and no vibration. The equipment operates stably during mass production, maintaining a stable production environment.

supports hydraulic lifting and swinging mechanisms, suitable for use with single or multiple tanks; a fixed speed or variable frequency drive can be selected according to the needs, and even supports vacuum dispersion or mixing functions to meet diverse process requirements.

Technical specification

Type/Parameter	Mixer motor (Kw)	Mixer speed (rpm)	Dissolver motor (Kw)	Dissolver speed (rpm)	Tank capacity (L)
FDT-150	4	50	11	1500	150
FDT-300	5.5	40	15	1500	300
FDT-500	7.5	25	22	1500	500
FDT-1000	11	25	37	1500	1000
FDT-1500	15	25	55	1500	1500

Efficient mixing
The mixer is equipped with a PTFE scraper, which closely adheres to the inner wall of the container that has been precision turned and mirror polished, continuously scraping off wall-mounted materials to ensure no dead corners or residues, significantly improving mixing efficiency.

Heavy-duty structural design
Specially designed for high-solid-content products. The structure is sturdy and durable. It easily handles materials with viscosity up to 100000 CPS.

Precise and stable operation
Precise mechanical design ensures low noise and no vibration. The equipment operates stably during mass production, maintaining a stable production environment.

Flexible and controllable operation
supports hydraulic lifting and swinging mechanisms, suitable for use with single or multiple tanks; a fixed speed or variable frequency drive can be selected according to the needs, and even supports vacuum dispersion or mixing functions to meet diverse process requirements.
