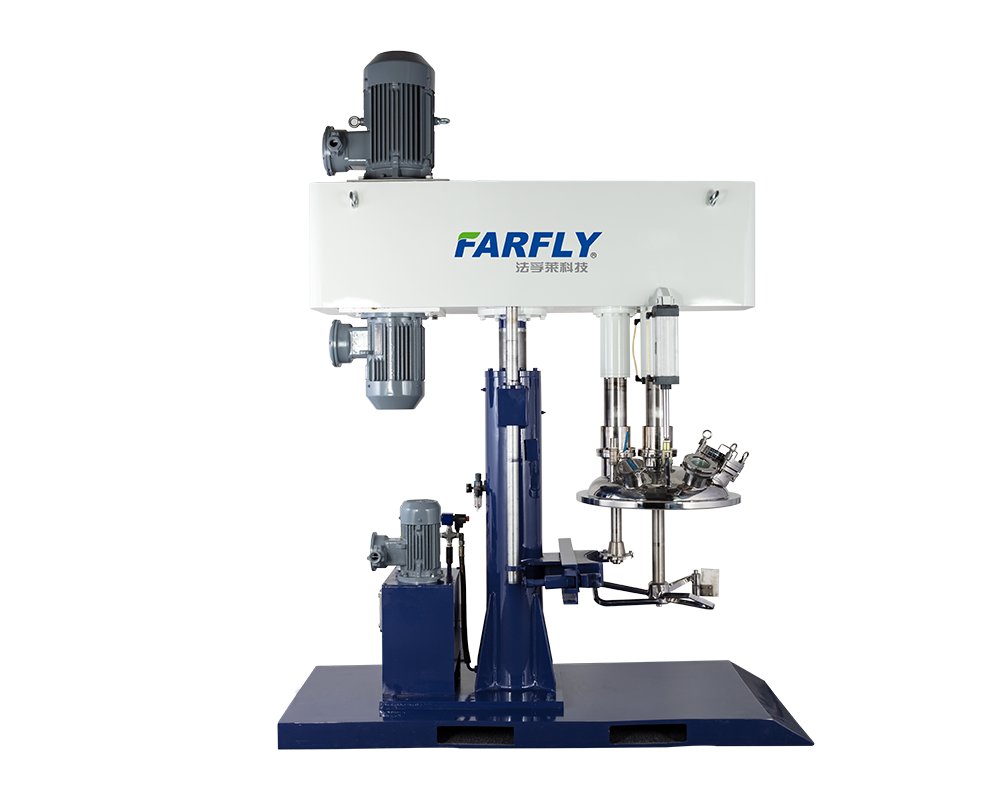

FDL Double shaft mixer

Product Introduction

The FDL Double shaft mixer is a high-end industrial piece of equipment designed specifically for efficient dispersion and mixing, particularly suitable for the production of high viscosity (up to 150000 CPS) products.
The device adopts a dual-axis collaborative working mechanism, which is operated simultaneously by a scraper stirrer (low-speed) and a high-speed disperser. Under the dual action of strong shear force and mixing force, materials can be quickly mixed and dispersed. The equipment has a sturdy structure and is designed for the mass production of heavy-duty, high-viscosity products. It is easy to operate and can be easily completed by controlling the lifting and swinging of the mixer.

Our team consists of highly motivated and skilled specialists who know how to deal with any issue that you may come across. This creates a basis for lasting relationships with our clients built on trust and mutual understanding.

We are devoted to creating unique and innovative solutions along with the high-quality supporting services. Our team consists of highly motivated and skilled specialists who know how to deal with any issue that you may come across. This creates a basis for lasting relationships with our clients built on trust and mutual understanding.

Product Performance

The mixer is equipped with a PTFE scraper, which can tightly adhere to the inner wall of the container and continuously scrape off the material on the wall. The inner wall of the container is precision-machined and mirror-polished to ensure that the scraper can scrape off all adhesive materials, achieving residue-free mixing and significantly improving mixing efficiency.

The large-area bed board provides high stability, can be installed underground, and is equipped with bolts to fix the mixer and spindle, making it easy to disassemble and clean. By controlling the rise, stop, and fall of the mixer, a simple and convenient operation can be achieved.

Specially designed for handling high viscosity products (up to 150000 CPS), the structure is heavy and sturdy. The equipment has been precisely designed to achieve vibration-free and low-noise operation, making it very suitable for large-scale production.

Hydraulic lifting and swinging mechanisms can be used for single or multiple tanks. Multiple clamping modes (with clamping, manual rotation clamping, pneumatic clamping) are available for quick fixation of the mixing tank to prevent accidents that may occur due to tank displacement. At the same time, fixed speed or variable frequency drive variable speed, as well as vacuum dispersion or mixing functions, can be provided according to requirements.

Constructed using tested and validated high-quality parts and components to ensure equipment reliability. Equipment that complies with ATEX II 2GD c IIB T3 standards and meets specific safety regulations can be provided upon request.

Technical specification

Type/ Parameter	Tank capacity (L)	High speed power (Kw)	Low speed powe (Kw)	High speed blade diameter (mm)	Low speed shaft Mixing device diamete (mm)	High speed shaft(rpm)	Low speed shaft(rpm)	Max.range of up and down (mm)	L×W×H (mm)
FDL-600	150	7.5~11	4~4.5	200	570	1500	90~120	700	1750×1250×2350
FDL-900	500	18.5~22	7.5~15	250	860	1500	60~120	950	2420×1400×3106
FDL-1000	600	22~37	11~30	280	960	1500	120	1000	2800×1700×3250
FDL-1200	900	30~55	11~37	330	1160	1500	120	1100	2800×1700×3250

No residue self-cleaning design
The mixer is equipped with a PTFE scraper, which can tightly adhere to the inner wall of the container and continuously scrape off the material on the wall. The inner wall of the container is precision-machined and mirror-polished to ensure that the scraper can scrape off all adhesive materials, achieving residue-free mixing and significantly improving mixing efficiency.

High stability and ease of operation
The large-area bed board provides high stability, can be installed underground, and is equipped with bolts to fix the mixer and spindle, making it easy to disassemble and clean. By controlling the rise, stop, and fall of the mixer, a simple and convenient operation can be achieved.

Durable and low noise operation
Specially designed for handling high viscosity products (up to 150000 CPS), the structure is heavy and sturdy. The equipment has been precisely designed to achieve vibration-free and low-noise operation, making it very suitable for large-scale production.

Flexible configuration and security assurance
Hydraulic lifting and swinging mechanisms can be used for single or multiple tanks. Multiple clamping modes (with clamping, manual rotation clamping, pneumatic clamping) are available for quick fixation of the mixing tank to prevent accidents that may occur due to tank displacement. At the same time, fixed speed or variable frequency drive variable speed, as well as vacuum dispersion or mixing functions, can be provided according to requirements.

High quality and compliance
Constructed using tested and validated high-quality parts and components to ensure equipment reliability. Equipment that complies with ATEX II 2GD c IIB T3 standards and meets specific safety regulations can be provided upon request.
